Under the Hood of Amazon ECS on EC2: Agents, IAM Roles, and Task Isolation

When running containers on Amazon ECS using EC2 instances, there’s a lot happening under the hood on each host. Understanding these internals is crucial for operating ECS securely. In this first part of our deep-dive, we’ll explore how ECS on EC2 works - focusing on the ECS agent, the IAM roles and credential delivery mechanism, and where the boundaries (and lack thereof) lie between tasks on the same host. (In Part 2, we’ll leverage this knowledge to examine a real-world privilege escalation exploit in ECS.) ECScape - Hijacking IAM Privileges in Amazon ECS

TL;DR

• On EC2, ECS tasks share the same host OS; on Fargate each task gets its own micro‑VM. Different isolation model, different risk.

• A single, privileged ECS agent on each host registers the node, talks to AWS, starts/stops containers, and hands out IAM creds.

• AWS (not the agent) assumes each task’s IAM role, then puhshes those short‑lived keys down to the agent, which serves them at 169.254.170.2.

• The agent’s own identity comes from the EC2 instance role via IMDS. If those keys leak, someone can impersonate the agent.

• Per‑task isolation depends on namespaces, iptables, and the agent behaving correctly—containers aren’t a hard boundary on EC2.

Recommended Primers

If any of the acronyms below feel rusty, a quick skim of these docs will make the deep-dive smoother:

• AWS Identity & Access Management (IAM)

• Amazon EC2 basics

• Docker fundamentals

• IMDS

• Amazon ECS overview

• Signature Version 4 (SigV4)

• AWS Fargate

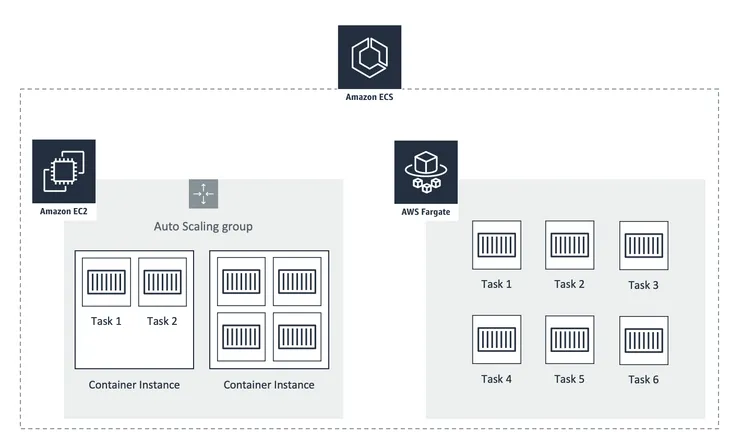

ECS Launch Types: EC2 vs. Fargate

ECS supports two launch models for running containers: EC2 and Fargate. With EC2 launch type, you manage a cluster of your own EC2 instances (virtual machines) that run the ECS agent and host your containers. In contrast, Fargate is a managed option where AWS runs tasks in isolation without exposing the underlying server to you.

Why does this matter? In Fargate, each task gets its micro-VM and does not share the kernel, CPU, memory, or network interface with other tasks. That design gives you a strong, hypervisor‑level isolation boundary out of the box. By contrast, when you run ECS tasks on EC2 instances, multiple containers live side‑by‑side on the same host OS. They share the Linux kernel and other system resources, blurring isolation boundaries.

Understanding how the ECS agent manages containers and credentials on EC2 instances will highlight where those boundaries exist and where they might break down.

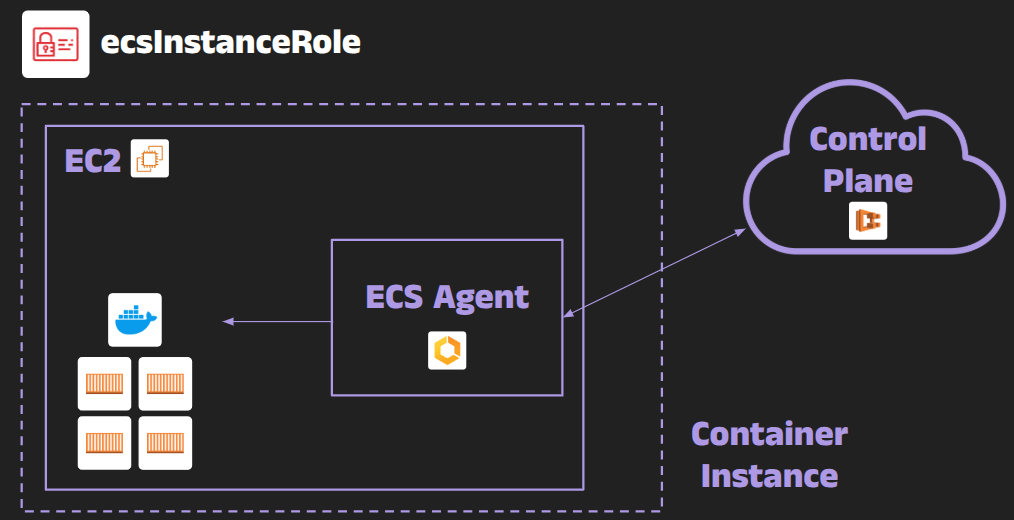

Meet the ECS Agent

When you launch an ECS cluster on EC2, each EC2 instance (called a container instance in ECS terminology) runs a process called the ECS agent. The agent is essentially a specialized Docker/Container orchestrator that connects your EC2 host to the ECS control plane. AWS provides the agent as an open-source application (it even runs as a privileged Docker container itself). Its main responsibilities include:

• Cluster Registration & Heartbeat: When the EC2 instance starts, the agent registers itself with your ECS cluster using the cluster’s name/ARN. It maintains a long-lived connection (or long-poll) with the ECS service to report status and retrieve updates (like new tasks to run).https://naorhaziz.com/posts/ecscape-hijacking-iam-in-ecs/

• Task Lifecycle Management: Upon receiving instructions to start containers (tasks), the agent will pull the required images (integrating with Amazon ECR if needed), create and run containers via the local Docker daemon, and later stop or clean them up as instructed. It also reports back the status of tasks (e.g., RUNNING, STOPPED, exit codes).

• Networking Setup: The agent sets up network interfaces and rules for containers. In the awsvpc network mode, it will attach a dedicated Elastic Network Interface (ENI) to the task and configure the container’s network namespace with that ENI. In bridge/host modes, the agent configures local iptables rules to route task traffic and protect the metadata endpoints.

• Logs and Metrics Forwarding: If your task is configured to use CloudWatch Logs or other logging (e.g., FireLens) or to send task metrics, the agent helps facilitate that. For example, for CloudWatch Logs it might request a temporary token (using an IAM execution role) and forward container logs, without exposing that token to the container.

• Credential Delivery to Tasks: This is one of the most important roles of the agent. When you specify an IAM task role for your ECS task (so the application can call AWS APIs), the ECS agent ensures the task can obtain temporary credentials for that role. It does so by receiving the credentials from the ECS control plane and then exposing them via a local HTTP endpoint accessible only to that task. We’ll dive deeper into how this works shortly.

Think of the ECS agent as a middleman between your containers and the AWS ECS control plane, with the power to orchestrate containers on the host and hand out credentials or resources to them as needed. Because it runs with elevated privileges on the host, it has access to the host’s resources that normal containers do not.

Note: The ECS agent typically runs in the host network mode, meaning it shares the host’s network stack. This is by design, to allow the agent to communicate with AWS endpoints and manage network namespaces for tasks. A side effect is that you (as the ops team) can implement network rules on the host that apply to all containers – for example, blocking certain external access from tasks (more on this later).

The EC2 Instance Role and IMDS: Credentials for the Agent

Every ECS EC2 instance should be launched with an IAM role attached to it (as an EC2 Instance Profile). A common default is an IAM role named ecsInstanceRole, which comes with a managed policy AmazonEC2ContainerServiceforEC2Role.

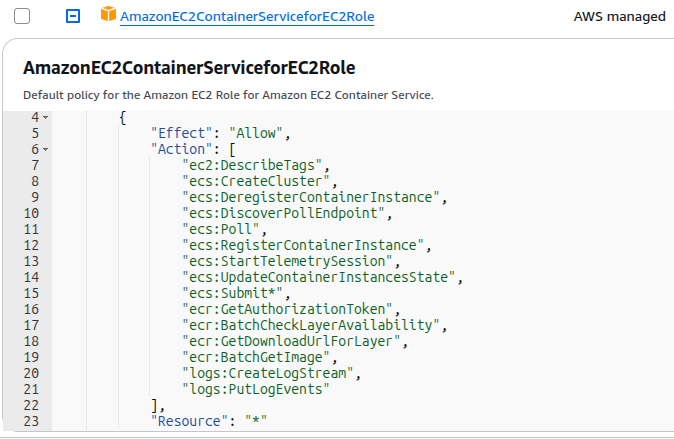

This instance role is used by the ECS agent to call AWS APIs on your behalf. It grants only the limited permissions needed for the agent’s operations – for example:

• ECS control plane: Permissions like ecs:RegisterContainerInstance, ecs:DiscoverPollEndpoint, ecs:Poll, ecs:Submit* (to register the instance, poll for tasks/updates, and submit status).

• ECR image pulls: ecr:GetAuthorizationToken, ecr:BatchGetImage so the agent can fetch private Docker images from ECR if your tasks need them.

• CloudWatch Logs/Telemetry: Permissions such as logs:CreateLogStream, logs:PutLogEvents if using CloudWatch, and others to support sending metrics.

Notably, the instance role is separate from any roles you assign to your tasks – it’s only meant for the agent’s infrastructure duties, not for application-level API calls. In fact, the instance role typically does not include privileges like generic sts:AssumeRole or access to your application data by default.

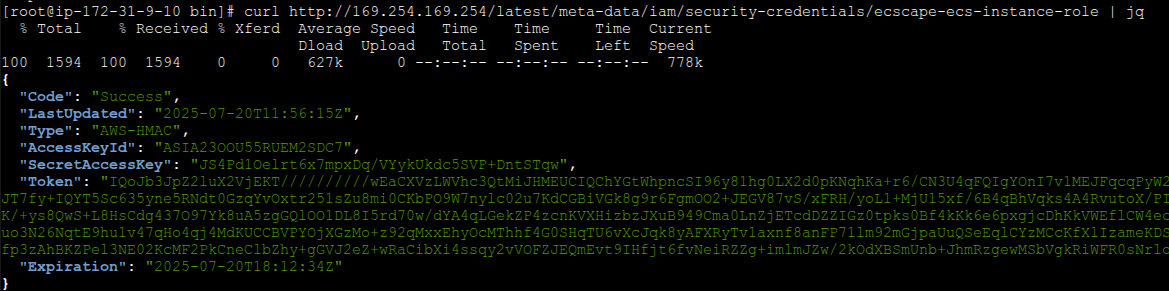

How does the ECS agent get the credentials for this role? It uses the standard EC2 Instance Metadata Service (IMDS). On every EC2 instance, there is a special HTTP endpoint http://169.254.169.254/latest/meta-data/iam/security-credentials/ which will return temporary AWS credentials (Access Key, Secret Key, Session Token) for the IAM role attached to that instance. The ECS agent, running on the host, queries this metadata endpoint regularly to get and refresh its own credentials (in this case, for the ecsInstanceRole). It then uses those credentials to authenticate to ECS and other services.

Agent Registration: Announcing the Container Instance

When an ECS‑optimised EC2 host boots, the ECS agent (running as a privileged Docker container) must introduce itself to the control plane. It does this with a single API call - RegisterContainerInstance - signed with the instance‑role credentials and authorised by the ecs:RegisterContainerInstance action.

The request body contains:

• clusterArn – which cluster to join
• EC2 instance‑identity document – AMI ID, instance ID, region, etc.
• resources – CPU, memory, GPU, ENI capacity
• versionInfo – agent build hash + Docker version

If the signature checks out, ECS accepts the host and returns a containerInstanceArn - a unique ID the agent will use later.

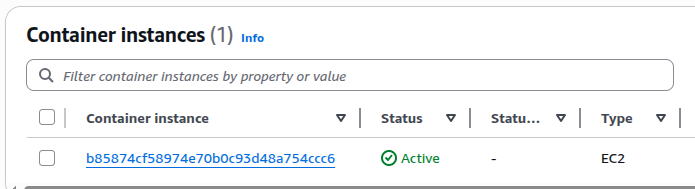

After this action is completed, the newly registered container instance will appear on the AWS console:

Authorization Flow: From DiscoverPollEndpoint to a SigV4‑Signed ACS WebSocket

The ECS agent authenticates itself to the control plane with exactly two IAM permissions on the instance role:

• ecs:DiscoverPollEndpoint - Returns a short‑lived hostname for ACS (command channel) and TCS (telemetry).
• ecs:Poll - Authorises the long‑lived WebSocket upgrade that carries tasks, IamRoleCredentials, ACKs, etc.

If a principal has those two actions – nothing more – it can act as the agent for that container instance.

Step 0 - Instance role credentials

The agent starts by fetching temporary keys from IMDS for the instance role (usually ecsInstanceRole). Those credentials sign every subsequent control‑plane request.

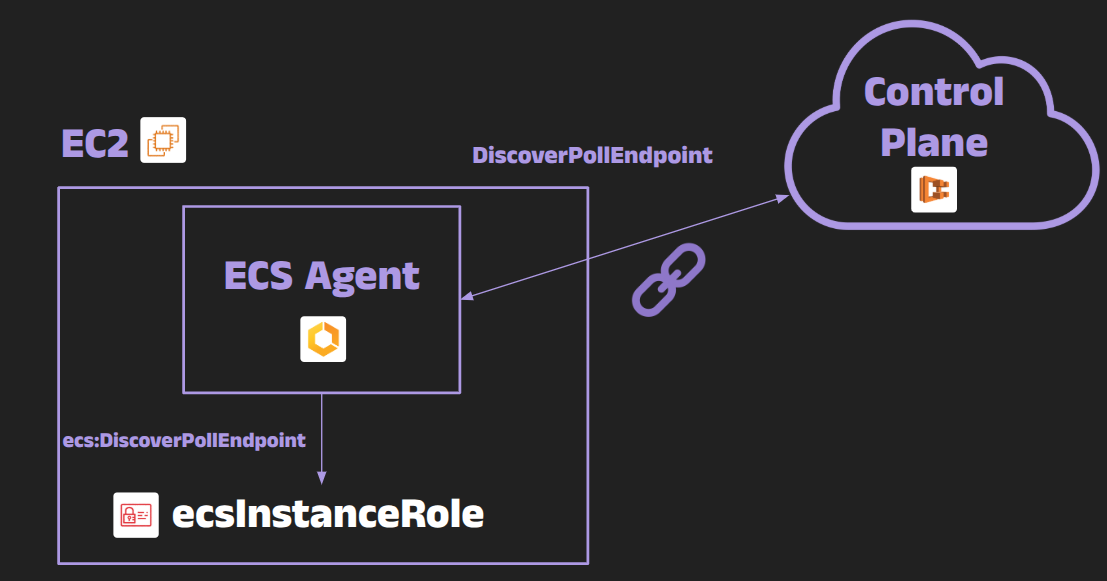

Step 1 - DiscoverPollEndpoint

The agent calls DiscoverPollEndpoint API, using ecs:DiscoverPollEndpoint permission. This endpoint discovery happens at startup and periodically during operation for endpoint rotation. Typical response:

{
  "endpoint":           "https://ecs-a-1.us-east-1.amazonaws.com",
  "telemetryEndpoint":  "https://ecs-t-1.us-east-1.amazonaws.com",
  "serviceConnectEndpoint":  "https://ecs-sc-1.us-east-1.amazonaws.com",
}

The URLs are time‑scoped and may rotate every few hours for load‑balancing and security. The serviceConnectEndpoint is used for Service Connect configuration when applicable.

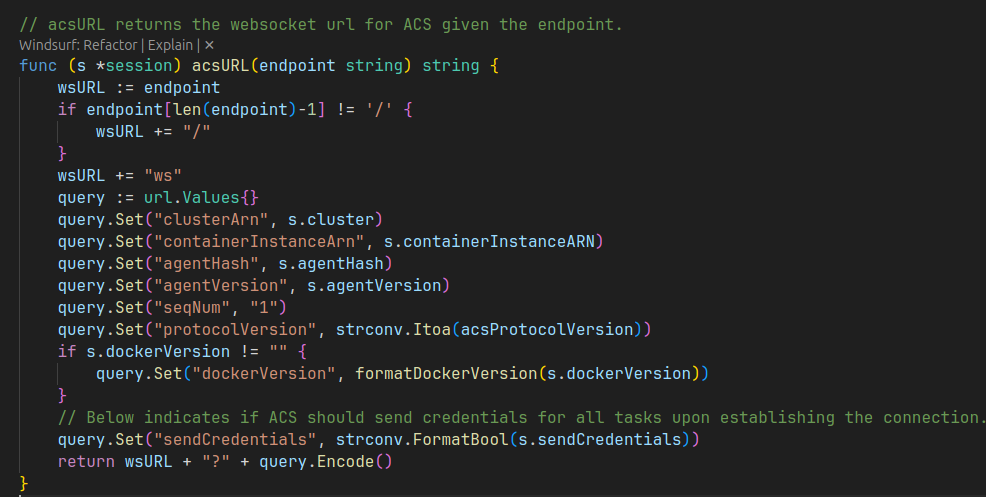

Step 2 - Build WebSocket URL (“enrichment”)

The agent expands the bare hostname into a query‑rich URL:

wss://ecs-a-1.<region>.amazonaws.com/ws?
  agentHash=<agent-hash>&
  agentVersion=<agent-version>&
  clusterArn=arn:aws:ecs:<region>:<account-id>:cluster/<cluster-name>&
  containerInstanceArn=arn:aws:ecs:<region>:<account-id>:container-instance/<instance-uuid>&
  dockerVersion=<docker-version>&
  protocolVersion=<protocol-version>&
  seqNum=1&
  sendCredentials=true

Every parameter becomes part of the Canonical Request in SigV4; altering one byte breaks the signature.

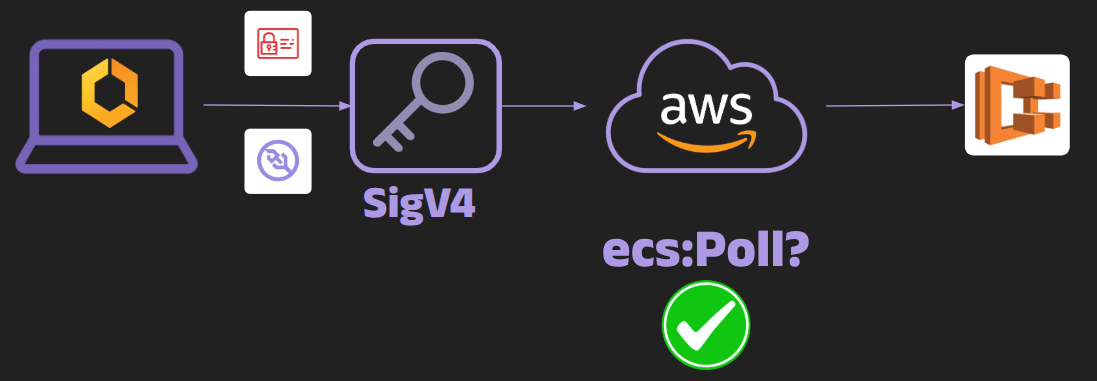

Step 3 - SigV4 upgrade (ecs:Poll)

The agent performs an HTTPS GET with Upgrade: websocket plus standard SigV4 headers. If IAM allows ecs:Poll, the control plane answers 101 Switching Protocols. The socket is now live, and the ACS protocol rides over it.

ACS Protocol Deep Dive

Agent Communication Service (ACS) is Amazon’s proprietary, undocumented real-time messaging protocol that operates over WebSocket connections. Unlike REST APIs, ACS uses persistent bidirectional streams of JSON-framed messages for near-instantaneous task lifecycle management and credential distribution.

Protocol Architecture

The protocol operates on a push-pull model: AWS’s control plane pushes desired state changes down to agents, while agents acknowledge receipt and report actual state back up. This creates a eventually consistent distributed system where the control plane maintains authoritative state, but agents operate autonomously during network partitions.

Message Flow Pattern:

Control Plane → Agent: "Start task X with these credentials"
Agent → Control Plane: "Acknowledged, task X starting"
Agent → Control Plane: "Task X now running, credentials received"

Key Message Categories

Task Orchestration Messages:

• PayloadMessage - The heavyweight carrying complete task definitions, container specifications, and crucially, embedded ExecutionRoleCredentials and RoleCredentials for IAM role assumption
• TaskManifestMessage - Lightweight inventory updates listing which tasks should be running and their desired states
• TaskStopVerificationMessage - Graceful shutdown coordination allowing configurable drain periods

Credential Management Messages:

• IAMRoleCredentialsMessage - Dedicated credential delivery distinguishing between TaskExecution (for ECS operations like image pulling) and TaskApplication (for container workloads)
• RefreshCredentialsMessage - Proactive credential rotation before expiration, ensuring long-running tasks never face authentication failures

Connection Management:

• HeartbeatMessage/HeartbeatAckRequest - Bidirectional liveness probes detecting network partitions and connection health
• CloseMessage - Graceful connection termination with reason codes like “ConnectionExpired: Reconnect to continue”

Protocol Evolution

Looking at the AWS SDK source, we can see the protocol has evolved to include Service Connect endpoints, indicating Amazon’s continued investment in this internal communication channel. The service connect endpoint field in DiscoverPollEndpointOutput suggests ACS now handles service mesh configuration in addition to traditional task orchestration.

The protocol’s undocumented nature means it can evolve rapidly without backward compatibility concerns, allowing Amazon to optimize for performance and security without external API constraints.

From Instance Role to Task Role: Credential Isolation per Task

One of the most convenient features of ECS is the ability to assign an IAM role to a task (often called the task role or IAM task role). This allows the application code running in the container to call AWS APIs (S3, DynamoDB, etc.) without embedding AWS keys in the container image or using long-lived credentials. Each task’s role is specified in the task definition, and different tasks can have different IAM roles. The expectation is that each task should only be able to use its own IAM role’s permissions, and not touch credentials belonging to other tasks.

So how does ECS provide each task with credentials for its role? The flow works like this:

1. Control Plane Assumes the Role: When a task is about to be launched, the ECS service back-end (the ECS control plane, acting as the principal ecs-tasks.amazonaws.com) will perform an STS AssumeRole operation on the IAM role specified for the task. This yields a set of temporary credentials (let’s call them TaskCredentials: AccessKey/Secret/Token) valid for a short duration (usually 1-6 hours).

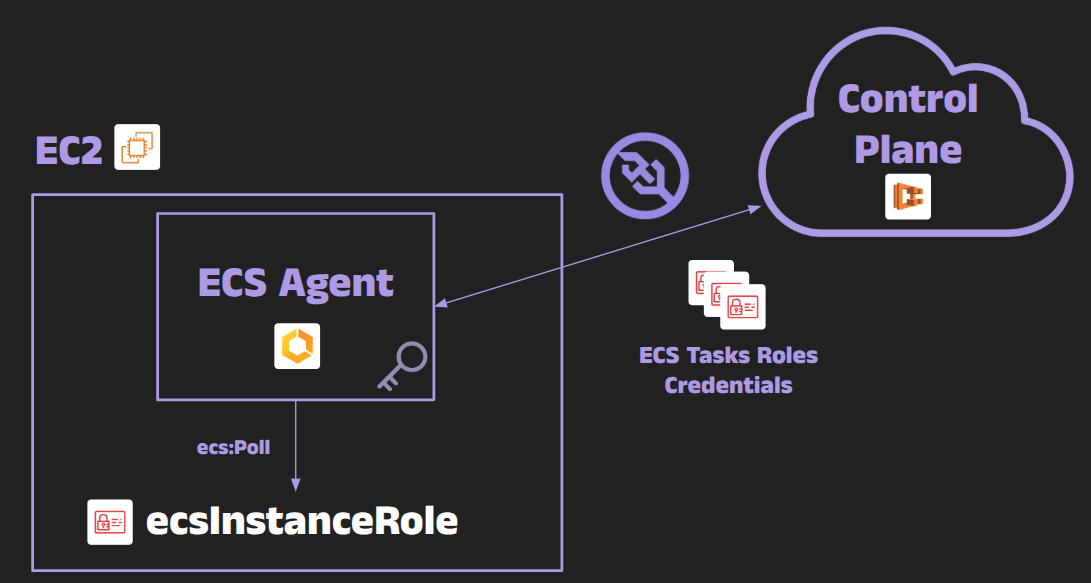

2. Credentials Pushed to the ECS Agent: The ECS control plane then sends these temporary TaskCredentials down to the ECS agent running on the appropriate EC2 instance. This happens over ACS connection using IAMRoleCredentialsMessage and RefreshCredentialsMessage messages.

3. Agent Stores and Serves Credentials: The agent caches these credentials in memory, indexed by an identifier. It then exposes them via a metadata service running at 169.254.170.2. When the container for that task starts, the agent injects an environment variable into it: AWS_CONTAINER_CREDENTIALS_RELATIVE_URI. This is a unique path, such as /v2/credentials/12345678-90ab-cdef-1234-567890abcdef, that the task can query on the special 169.254.170.2 endpoint. For example, inside the container, an AWS SDK will hit http://169.254.170.2/v2/credentials/12345678-… and receive a JSON blob of credentials for that task’s role.

4. Task Uses Its Credentials: The container’s application code, using the AWS SDK default provider chain, will automatically pick up those credentials (the SDK knows to query the container credentials URI if present). The task now has the correct IAM privileges as intended, and ideally it never had to know about the underlying instance role at all.

This mechanism means each task gets credentials scoped to its IAM role, and the credentials are delivered at runtime. The tasks do not see each other’s credentials because:

• Each credentials payload has a unique UUID and is only delivered to the agent (not stored in a place other tasks can read).

• In modern ECS (with awsvpc networking), each task runs in its own network namespace, so it can only reach the 169.254.170.2 endpoint within that namespace, which the agent routes to the correct credentials. Tasks shouldn’t be able to query the agent for another task’s URI because they can’t even see that other task’s network interface or environment variables.

• Even in bridge network mode, the agent sets up iptables rules to restrict access so that one container can only get its own credentials via the specific URI.

In theory, this isolates IAM credentials on a per-task basis, which is a great security feature. It avoids the historical problem of sharing the instance’s IAM role among all tasks. Now, a web app container might only have rights to a specific S3 bucket, while a different admin task on the same host might have broader rights - and the two shouldn’t conflict.

However, as with any security mechanism, it assumes the controls are working correctly. If there’s any way for a container to break out of its network namespace or trick the agent, those assumptions could fail. Remember that the agent itself ultimately decides “who gets what credentials” when serving that 169.254.170.2 request. If an attacker finds a bug or misconfiguration in that process, they could potentially obtain credentials not meant for them. In Part 2, we will see exactly such a scenario.

Key Takeaways

1. Single Authority on the Host: The agent registers the EC2 instance, keeps a live control‑plane socket, and orchestrates every container.

2. Credential Hub: All task‑role credentials arrive from AWS over the agent’s WebSocket and are cached only in memory.

3. Network & Metadata Gatekeeper: The agent wires ENIs, sets iptables, and exposes 169.254.170.2 so each task can fetch only its own keys.

4. Trust Equals Instance Role: The control plane trusts the agent because it signs requests with the instance‑role credentials.

5. Failure Domain: If the agent—or its instance‑role keys—are compromised, the boundary between tasks vanishes.

Now that we’ve covered how ECS on EC2 operates - from the agent and instance roles to task IAM credentials and isolation boundaries – we have the necessary background to understand a fascinating (and critical) security weakness that was discovered. In Part 2, we will explore “ECScape,” an exploit where a malicious container on ECS hijacks IAM privileges across co-located tasks. We’ll see how the assumptions above can be subverted, allowing one container to impersonate the ECS agent and retrieve all the task credentials on a host. Stay tuned!

➡️ Continue to Part 2: ECScape - Hijacking IAM Privileges in Amazon ECS
